Stainless Steel Balustrade USA — Modular 316L Systems

Stainless Design supplies modular stainless steel balustrade systems for every USA project — post-and-rail, cable infill and glass infill configurations in 316L marine-grade stainless. No welding required, factory-direct pricing, ships to all 50 states.

316L Stainless Steel Balustrade — USA Grade, Height & Load

A stainless steel balustrade for USA residential and commercial projects must satisfy both dimensional code requirements and structural performance standards. IRC Section R312 sets 36" minimum height for residential USA applications — 42" in California under CRC Section R312.1. IBC Section 1015 requires 42" for commercial and multifamily buildings. All USA guards must resist the point loads in IBC Table 1607.8: 200 lb applied over any 1-square-foot area for residential and 500 lb for commercial. Stainless Design's post-and-rail balustrade is structurally designed to these loads, with baseplate dimensions and anchor bolt patterns engineered for USA concrete slabs, timber deck framing and steel structure substrates.

The choice between 304-grade and 316L for a USA stainless steel balustrade is primarily a function of installation environment. For interior USA applications — lobbies, mezzanines, indoor staircases — 304-grade provides adequate corrosion resistance. For every USA outdoor application, poolside, coastal and humid environment, 316L is the only specification that maintains its appearance over the long term without rust staining or surface pitting. The 2–3% molybdenum content in 316L blocks chloride-ion attack at grain boundaries — the mechanism responsible for corrosion in all USA coastal and pool installations. Stainless Design supplies exclusively 316L for all outdoor USA stainless steel balustrade, using precision TIG welds ground to a No. 4 satin finish or mirror polish — eliminating the crevice corrosion sites that untreated welds create.

Stainless Design's modular stainless steel balustrade uses a 316L round tube post system (48mm and 50mm diameter) with mechanical connections at every joint — no field welding required. Post bases surface-mount with stainless anchor bolts or cast-in-place with sleeve anchors. Top rails connect with internal mechanical joiners allowing site adjustment for level runs and raked stair sections. Infill mounts to the same post system: 10mm or 12mm SGCC-certified glass panels in aluminium base channel, 316L cable tensioned at 3" spacing to meet the USA 4" sphere rule, or 316L square or round balusters at 4" maximum center spacing per IBC 1015.4 and IRC R312.1.3.

Why Buy Stainless Steel Balustrade from Stainless Design?

  • ✓ 316L exclusively — all outdoor, coastal and pool USA applications
  • ✓ 36" (IRC R312) and 42" (IBC 1015 / CRC R312.1) post heights standard
  • ✓ Load-rated to IBC Table 1607.8 — engineered baseplates for concrete and timber
  • ✓ Glass, cable and baluster infill — all 4" sphere rule compliant
  • ✓ No field welding — full mechanical connection, standard tools
  • ✓ Factory-direct — all 50 US states, anchor drawings on request

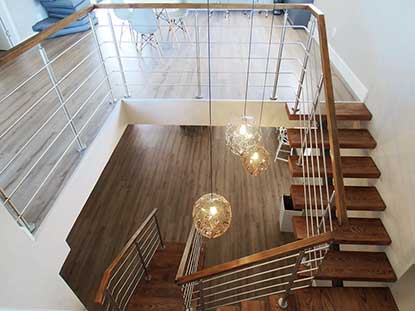

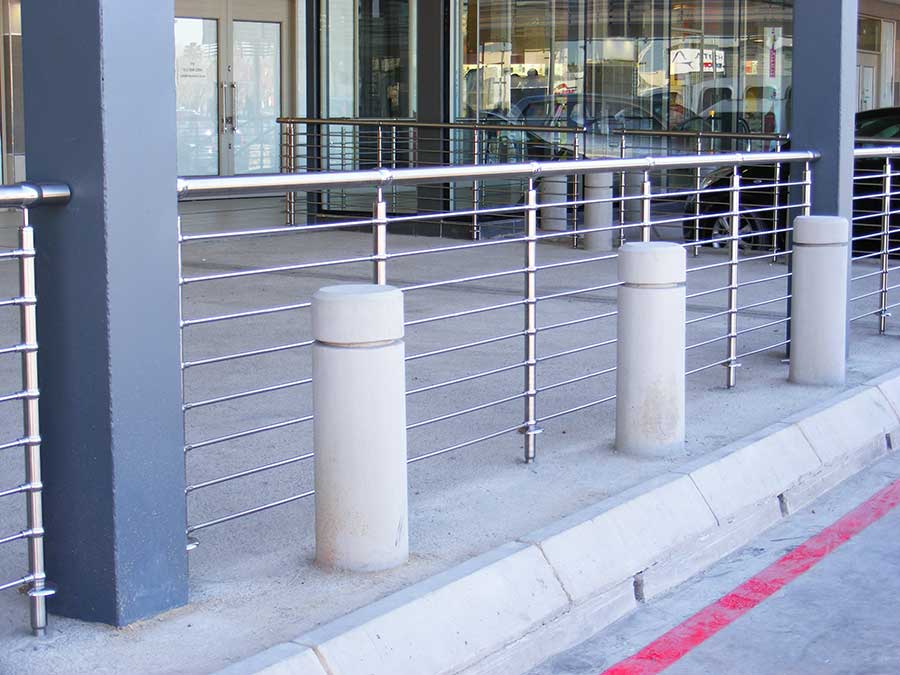

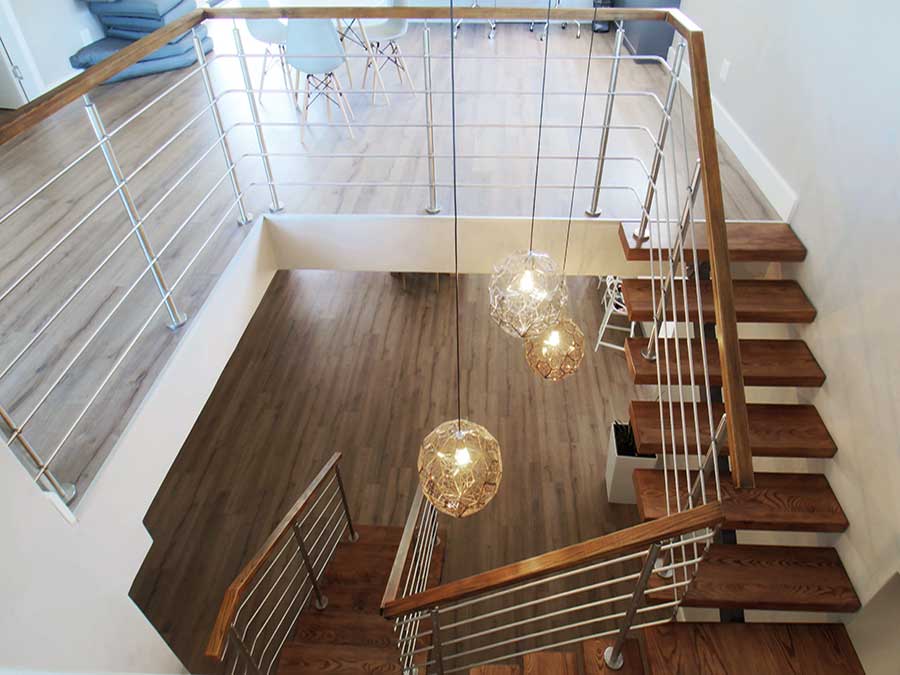

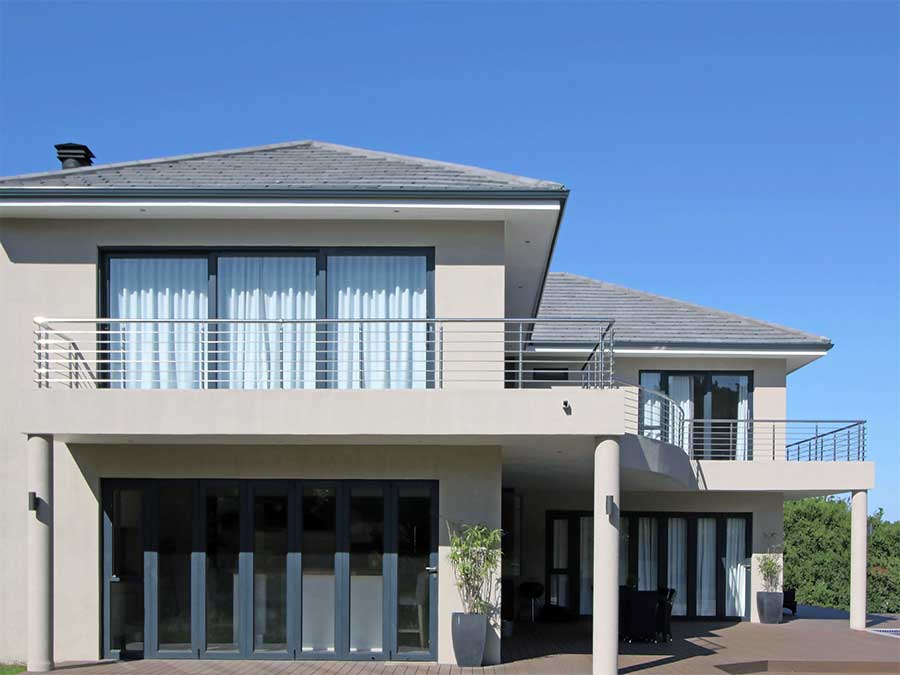

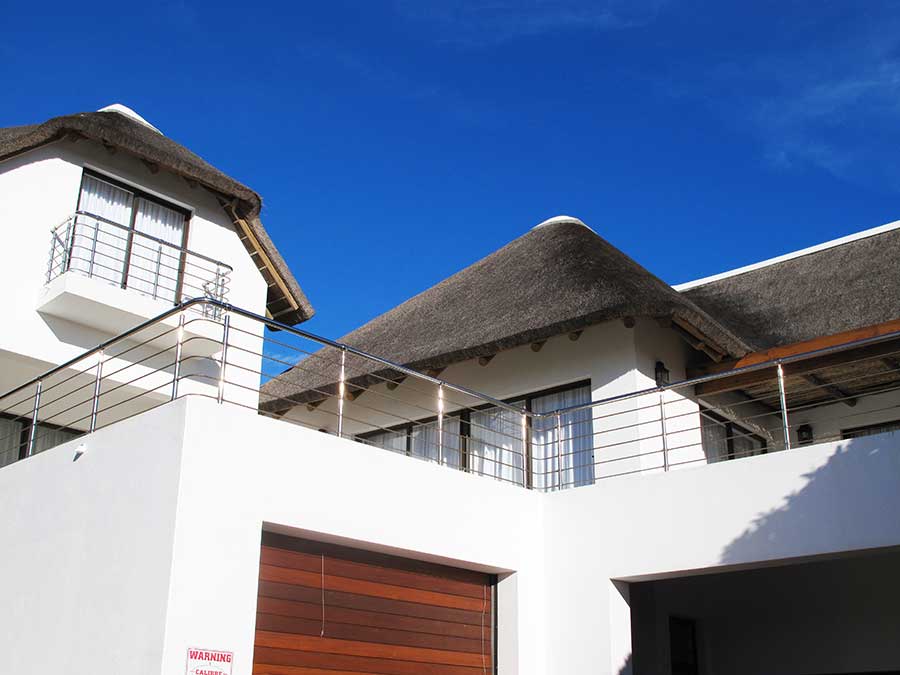

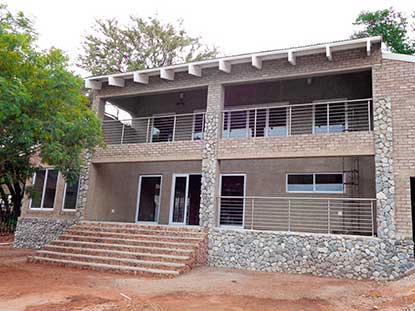

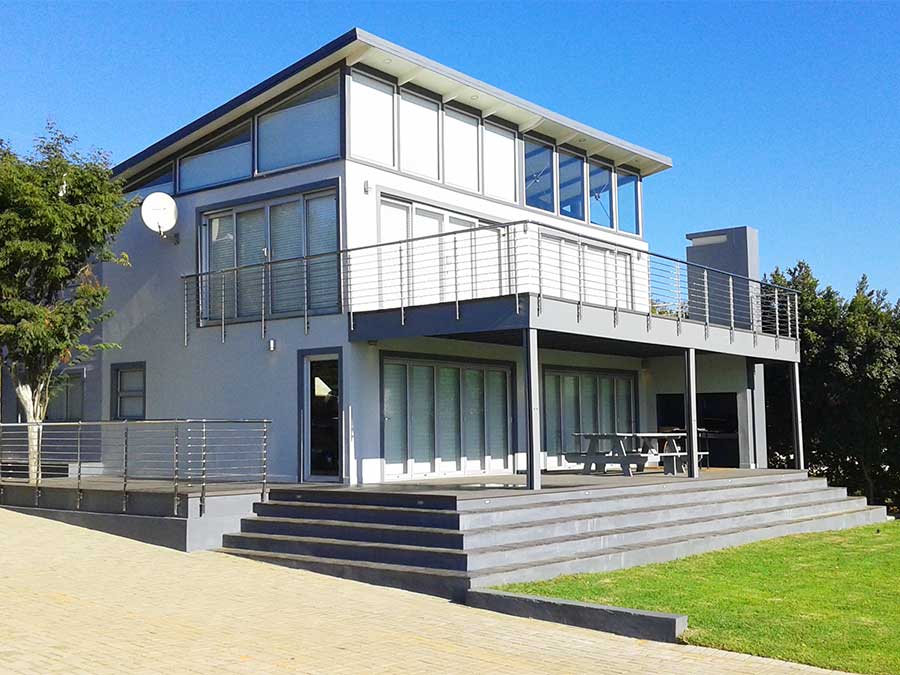

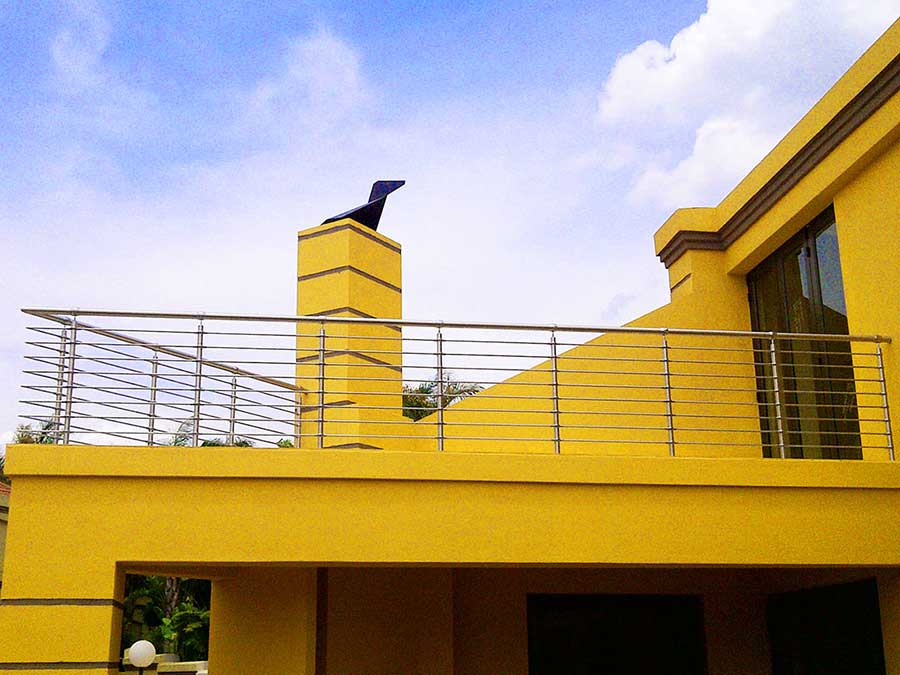

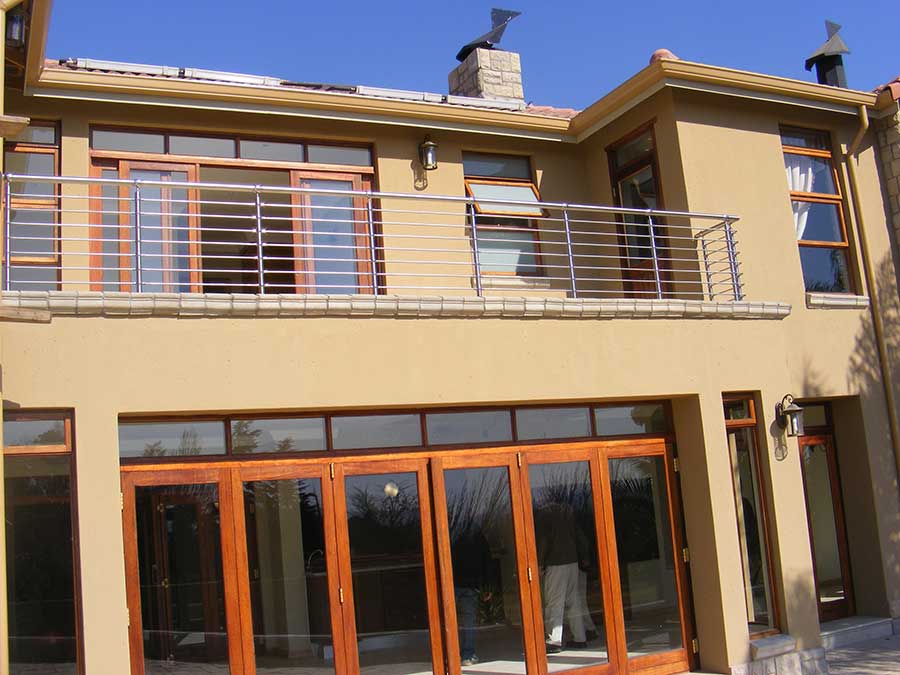

Stainless steel balustrade USA 316L post rail installation completed
316L stainless steel balustrade USA glass infill deck project
Download Our Stainless Steel Balustrade PDF Catalogue

Frequently Asked Questions — Stainless Steel Balustrade USA

No. 4 brushed finish is the most widely specified finish for stainless steel balustrade in USA residential and commercial projects. The No. 4 finish (40–80 grit parallel directional grain) is approved by virtually every USA HOA design committee and is commonly called out in USA architectural specifications as the default exterior stainless steel finish. It hides minor scratches (new scratches blend with the grain direction), is easy to clean, and maintains a consistent appearance in both bright and overcast lighting. Mirror polish (No. 8) is specified for high-end interior applications — lobbies, luxury residences, retail — but shows fingerprints and requires more frequent maintenance. Satin (No. 6) is a mid-grade option between brushed and mirror. For USA coastal environments, electropolished 316L provides the highest corrosion resistance and is specified for oceanfront and marina balustrades where chloride levels are highest.

USA stainless steel balustrade height requirements depend on building type. IRC Section R312 requires 36 inches for residential balustrades on decks, balconies and landings more than 30 inches above grade. IBC Section 1015 requires 42 inches for commercial, multifamily and assembly occupancies. California's CRC Section R312.1 requires 42 inches for residential decks regardless of occupancy — California residential balustrades must meet the same standard as commercial. OSHA 29 CFR 1910.29 requires 42 inches (±3 inches) for industrial walking-working surface guards. Height is always measured vertically from the floor or deck surface (not along the post) to the top of the balustrade rail. Stainless Design supplies post heights for all four code environments and identifies the applicable code with every USA quotation.

No. Stainless Design's modular stainless steel balustrade systems are completely weld-free in the field. All connections are mechanical — post bases anchor with stainless bolts into concrete (sleeve anchors, adhesive anchors) or timber (lag bolts, through-bolts). Top rail sections connect with internal stainless alloy joiners. Glass panels are clamped in spigots or channel with neoprene gaskets and mechanical cover plates. Cable fittings use swage-end turnbuckle tensioners. The only welded components are the factory-produced tube-to-fitting joints — these are TIG-welded, ground and polished at the factory, not on-site. Eliminating field welding avoids heat discoloration (heat tint) that permanently damages the passive layer of stainless steel, and eliminates the need for a certified welder on your USA job site. Any standard USA contractor with basic fabrication skills can install the system from Stainless Design's installation guide.

Yes. 316L is the mandatory specification for stainless steel balustrade in USA coastal environments — Florida, California, Gulf Coast, Pacific Northwest coast and all oceanfront and near-shore properties. The 2–3% molybdenum content in 316L was specifically developed to counter chloride-ion attack, which is the mechanism responsible for rust pitting and staining in salt-air environments. 304-grade stainless steel (no molybdenum) typically shows visible pitting and rust-colored staining within 18–36 months in coastal USA environments, which leads to costly remediation or early replacement. 316L in the same environment, with proper maintenance (periodic fresh-water washing to remove chloride accumulation), will maintain its appearance and structural integrity for 20–30 years. Stainless Design specifies 316L as the standard grade for all outdoor USA balustrade products — no exceptions, no upgrading required.

Stainless Design offers three infill options for USA stainless steel balustrade. Glass infill uses 10mm, 12mm or 16mm SGCC-certified tempered or laminated glass in spigot or channel systems — the most visually open option with no vertical elements obstructing the view. Cable infill uses 1×19 316L stainless steel cable at 3-inch maximum spacing, meeting the IBC 1015.4 / IRC R312.1.3 4-inch sphere rule — a modern, minimalist option with an unobstructed horizontal sightline. Round tube infill uses 316L round tube at 4-inch maximum spacing — the most traditional balustrade infill and the easiest to source replacement components for. All three infill types meet IBC and IRC load and infill spacing requirements. Combinations are possible — for example, glass panels on the deck section and cable infill on the stair section — which Stainless Design can specify and supply as a single coordinated package.
